一、產品的技術優勢：

1、 Technical advantages of the product:

1、專有流量數據模型算法；模糊理論控制溫度、濕度算法；

1. The algorithm of special flow data model, fuzzy control of temperature and humidity algorithm;

2、高性能智能微處理器及模數、數模轉換芯片；

2. High performance intelligent microprocessor and a / D and D / a conversion chip;

3、寬量程比100：1；大口徑，低流速，壓損可忽略；

3. Wide range ratio 100:1; large diameter, low flow rate, pressure loss can be ignored;

4、直接測量質量流量，無須溫壓補償；

4. Direct measurement of mass flow without temperature and pressure compensation;

5、低流速測量非常靈敏；

5. Low velocity measurement is very sensitive;

6、設計、選型方便，安裝、使用簡便；

6. It is convenient for design and selection, easy to install and use;

7、適合各類單一或混合氣體流量測量。

7. It is suitable for all kinds of single or mixed gas flow measurement.

二、產品特點：

2、 Product features:

1、采用穩定性極高的專利技術鉑RTD傳感器

1. Platinum RTD sensor with high stability and patent technology

2、采用享有專有技術”平衡結構封裝”,介質溫度自補償

2. Using proprietary technology "balanced structure package", self compensation of medium temperature

3、專有算法,可實現高線性、高重復性、高精度

3. Proprietary algorithm can achieve high linearity, high repeatability and high precision

4、量程比寬100:1,可據用戶要求可拓展

4. The range ratio is 100:1, which can be expanded according to the requirements of users

5、可實現大管徑小流量測量，最小流量可測低至零,分辨率0.001m/s

5. The minimum flow rate can be measured as low as zero, and the resolution is 0.001m/s

6、無可動部件、振動影響可忽略

6. No moving parts and negligible vibration effect

7、直管段要求不高1-2D

7. The requirement of straight pipe section is not high 1-2D

8、與介質的溫度、壓力無關

8. It has nothing to do with the temperature and pressure of the medium

9、專有高溫算法，介質溫度可達+510℃，

9. Proprietary high temperature algorithm, medium temperature up to + 510 ℃,

10、采用高濕算法，實現高精度測量

10. High humidity algorithm is used to realize high precision measurement

11、對流量信號鍵入12點動態修正，內置10點修正

11. Input 12 points dynamic correction for flow signal, and built-in 10 points correction

12、在線動態校正電流/電壓輸出

12. On line dynamic correction of current / voltage output

13、對粉塵等小顆粒不敏感

13. It is not sensitive to small particles such as dust

14、在線不斷流裝卸，維護方便

14. Online loading and unloading without interruption of flow, convenient maintenance

三、應用場合：

3、 Applications:

1、公用工程---電﹑氣﹑ 水處理的監控

1. Public works monitoring of power, gas and water treatment

管道的氣體；通用系統；沼氣；煤氣；天然氣；液化氣；鍋爐預熱空氣

Pipeline gas; general system; biogas; gas; natural gas; liquefied gas; boiler preheating air

2、石油與天然氣工業

2. Oil and gas industry

能量交換；填井氣回收； 燃?xì)庥?jì)量；氣體質量分析；泄漏氣測試；天然氣測量；火炬氣的監控

Energy exchange; well filling gas recovery; gas metering; gas quality analysis; leakage gas test; natural gas measurement; torch gas monitoring

3、電力行業

3. Electric power industry

燃料系統中氣體分配過程中的氣體測量；鍋爐及輔助系統中各種氣體的測量；燃?xì)鉅t中氣體測量；氫氣測量；電廠高爐的一次風、二次風的測量

Gas measurement in the process of gas distribution in fuel system; gas measurement in boiler and auxiliary system; gas measurement in gas furnace; hydrogen measurement; primary air and secondary air measurement of blast furnace in power plant

4、化學行業

4. Chemical industry

煙氣循環監測；采樣系統中氣體流量計量；引風機的氣體流量計量；化肥廠氨氣測量 ；電池工廠各種氣體流量測量

Flue gas circulation monitoring; gas flow measurement in sampling system; gas flow measurement of induced draft fan; ammonia measurement in fertilizer plant; various gas flow measurement in battery plant

5、冶金行業

5. Metallurgical Industry

鋼鐵廠加氣測量；煉鐵廠高爐煤氣的測量；焦化廠焦?fàn)t煤氣的測量；軋鋼廠加熱爐燃?xì)猓ǜ郀t煤氣、焦化煤氣、天然氣等）的測量控制；熱處理淬火爐等的氫、氧、氮等氣體的控制

Gas filling measurement of iron and steel plant; measurement of blast furnace gas of iron making plant; measurement of coke oven gas of coking plant; measurement control of heating furnace gas (blast furnace gas, coking gas, natural gas, etc.) in rolling plant; control of hydrogen, oxygen, nitrogen and other gases in heat treatment quenching furnace

6、紙漿與造紙行業

6. Pulp and paper industry

廢水處理系統中氣體的測量；煙道流量監控；鍋爐回收二次/三次空氣；鍋爐的燃?xì)夂涂諝馑惋L(fēng)測量

Gas measurement in wastewater treatment system; flue flow monitoring; boiler recovery of secondary / tertiary air; measurement of boiler gas and air supply air

7、食品及醫藥行業

7. Food and pharmaceutical industry

加工操作中新鮮空氣的加入；啤酒廠中的二氧化碳處理；瓶子消毒器中的熱空氣的流量；熱氧化過程中氣體流量測量；通風系統；鍋爐進氣﹑廢氣﹑過程控制

Fresh air addition in processing operation; carbon dioxide treatment in breweries; hot air flow in bottle sterilizer; gas flow measurement in thermal oxidation process; ventilation system; boiler intake, exhaust gas, process control

8、環保

8. Environmental protection

沼氣利用過程中的氣體測量；氯氣處理過程中氯氣氣體測量；污水處理過程中曝氣池的氣體測量；煙筒煙道排氣監測SO2和NOX的排量

Gas measurement in the process of biogas utilization; chlorine gas measurement in chlorine treatment process; gas measurement in aeration tank during sewage treatment; flue gas emission monitoring of SO2 and NOx

9、其他行業

9. Other industries

工廠壓縮空氣測量；煤粉燃燒過程粉/氣配比控制燃料；水泥工業豎式磨粉機排放熱氣流量控制

The results show that: the measurement of compressed air in factory; the control of pulverized coal / gas ratio in the process of pulverized coal combustion; the control of hot gas discharge from Vertical Pulverizer in cement industry

四、性能指標：

4、 Performance index:

1、測量范圍：0.5—100Nm/s （20℃，101.33KPa）

1. Measurement range: 0.5-100nm / S (20 ℃, 101.33kpa)

2、準確度: ±1%的讀數 ±0.5%滿量程

2. Accuracy: ± 1% of reading ± 0.5% of full scale

3、量程比：通常100：1（取決于標定流量的范圍）

3. Range ratio: usually 100:1 (depending on the range of calibrated flow)

4、管徑范圍: 15mm～6000mm

4. Pipe diameter range: 15mm ~ 6000mm

5、應用范圍: 適合各類單一或混合氣體。含塵、含沙、含濕氣、各種腐蝕性氣體

5. Application range: suitable for all kinds of single or mixed gases. It contains dust, sand, moisture and various corrosive gases

6、環境溫度范圍: -40℃～+85℃(無顯示); -30℃～+70℃(有顯示); 濕度小于90%RH

6. Ambient temperature range: - 40 ℃ - + 85 ℃ (no display); - 30 ℃ - + 70 ℃ (with display); humidity less than 90% RH

7、介質溫度范圍: -40℃～+100℃；-40℃～+200℃； -40℃～+450℃；-40℃～+510℃

7. Medium temperature range: - 40 ℃ - + 100 ℃; - 40 ℃ - + 200 ℃; - 40 ℃ - + 450 ℃; - 40 ℃ - + 510 ℃

8、傳感器直徑：ф3、ф2.5

8. Sensor diameter: ф 3, ф 2.5

9、插入式傳感器探桿直徑：ф19（標準）、ф16、ф12

9. Probe rod diameter of plug-in sensor: ф 19 (standard), ф 16, ф 12

10、傳感器材質：316不銹鋼、哈氏合金、鈦

10. Sensor material: 316 stainless steel, Hastelloy, titanium

11、探桿材質（保護套）： 316不銹鋼（標準）、哈氏合金

11. Probe rod material (protective sleeve): 316 stainless steel (standard), Hastelloy

12、雙向測量介質流量

12. Two way measurement of medium flow

13、模擬量輸出：流量：4-20mADC, 溫度：4-20mADC, 最大負載:1000Ω

13. Analog output: flow: 4-20madc, temperature: 4-20madc, maximum load: 1000 Ω

14、累積脈沖量輸出

14. Cumulative impulse output

15、鍵入12段非線性修正，內置10段非線性修正

15. Type in 12 segments of non-linear correction, built-in 10 segment nonlinear correction

16、通訊：串口輸出RS232/RS485

16. Communication: serial output RS232 / RS485

17、供電電源：24VDC/600mA；220VAC/2W；110VAC/3W

17. Power supply: 24 VDC / 600 Ma; 220 VAC / 2 W; 110 VAC / 3 W

18、報警：1－2路繼電器輸出、5A/220V、5A/30VDC、鍵入設定??

18. Alarm: 1-2 way relay output, 5A / 220V, 5A / 30VDC, input setting??

19、大屏幕LCD顯示：七位瞬時流量，八位累積流量

19. 8-bit LCD display for instantaneous flow

20、過程壓力:1.6Mpa（最大20MPa）

20. Process pressure: 1.6Mpa (maximum 20MPa)

21、安裝工藝形式：插入式（卡套、卡套＋球閥、法蘭連接）適用于DN80以上的管道安裝，管道式（法蘭、螺紋連接）適用于DN15以上的管道安裝。

21. Installation process form: plug in type (ferrule, ferrule + ball valve, flange connection) is suitable for pipe installation above DN80, and pipeline type (flange and thread connection) is suitable for pipe installation above DN 15.

22、防爆等級：本安型（iaⅡCT5）、隔爆型（ExdⅡCT4）

22. Explosion proof grade: intrinsically safe (IA Ⅱ CT5), flameproof (Exd Ⅱ cT4)

23、防護等級：IP65

23. Protection grade: IP65

熱式氣體質量流量計的安裝

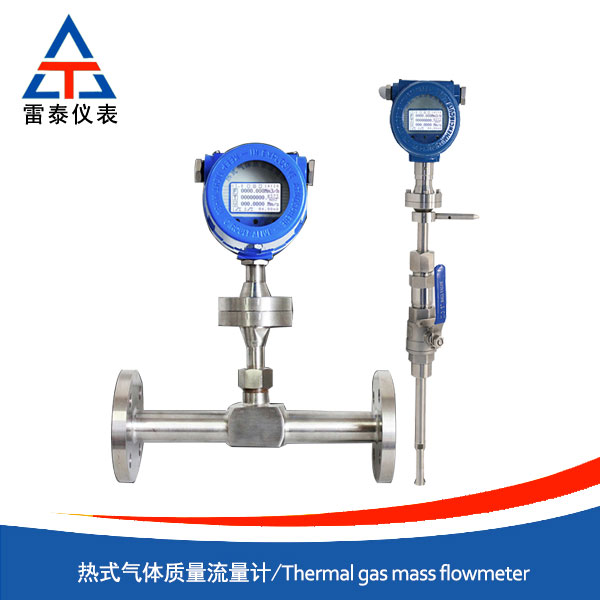

Installation of thermal gas mass flowmeter

1、插入式儀表安裝

1. Plug in instrument installation

將儀表傳感器桿上的止退螺母松開，使腔式連接螺母能夠沿傳感器桿滑向傳感器護套，使護套完全縮入腔式連接螺母中。

Loosen the check nut on the sensor rod of the instrument, so that the cavity connecting nut can slide along the sensor rod to the sensor sheath, so that the sheath is fully retracted into the cavity connecting nut.

1.

2. 將腔式連接螺母緊固于專用球閥上（需在它們之間加裝密封墊）

3. Fasten the cavity type connecting nut to the special ball valve (need to add sealing gasket between them)

4. 打開專用球閥，將傳感器桿壓入管道，直至止退螺母能夠與腔式連接螺母鎖緊。

5. Open the special ball valve and press the sensor rod into the pipe until the retaining nut can be locked with the cavity connecting nut.

6. 轉動傳感器桿，使標記點能與介質流動方向同向，鎖緊止退螺母。更改顯示屏方向。

7. Turn the sensor rod so that the mark point can be in the same direction as the flow direction of the medium, and lock the retaining nut. Change the display orientation.

8. 如果顯示屏的方向不能滿足現場顯示角度的要求，可以更改顯示屏的方向。顯示表頭可在水平6個方向上轉動，更改方法是：切斷電源，打開轉換器前蓋，斷開傳感器與轉換器連線（兩組共4根或3組6根，組與組之間不能互換，同一組兩根線可互換），松開表頭法蘭（旋掉6顆M6的內六角螺栓），此時可轉動轉換器（不要讓轉換器跌落），直到觀測方便，重新固定法蘭，并連接傳感器與轉換器連線,蓋緊轉換器前蓋，接通電源。

9. If the direction of the display screen cannot meet the requirements of the field display angle, the direction of the display screen can be changed. The indicator can be rotated in six horizontal directions. The change method is as follows: cut off the power supply, open the front cover of the converter, disconnect the connecting wire between the sensor and the converter (there are 4 in two groups or 6 in 3 groups, which cannot be interchanged between groups, and two wires in the same group can be interchanged), loosen the flange of the meter head (screw off 6 M6 hexagon bolts), and then turn the converter (do not let the converter fall) until It is convenient to observe. Fix the flange again, connect the sensor to the converter, close the front cover of the converter, and connect the power supply.

10. 2、管段式儀表安裝

11. 2. Installation of pipe section instrument

12. 確認管段的連接方式（法蘭連接或螺紋連接）。管段式儀表已在出廠時把傳感器裝配在專用管段上，用戶只需把管段再裝配到現場，因此相對現場插入式儀表的安裝要簡單。首先按照現場插入式儀表安裝的第1部選擇安裝點。然后按照管段式傳感器的尺寸切割管道、安裝配對法蘭或螺紋。后用螺栓安裝管段儀表，安裝時要保證儀表的標記方向和介質流體方向同向，并且顯示平面要垂直于水平面，管道軸心線要平行于水平面，誤差不能超過±5度

13. Confirm the connection mode of pipe section (flange connection or thread connection). The sensor has been assembled on the special pipe section when the pipe section instrument is delivered from the factory. The user only needs to assemble the pipe section to the site again, so the installation of the on-site plug-in instrument is relatively simple. First, select the installation point according to the first part of the field plug-in instrument installation. Then cut the pipe and install the mating flange or thread according to the size of the segment sensor. Then install the pipe section instrument with bolts. During installation, ensure that the marking direction of the instrument is in the same direction as the medium fluid direction, and the display plane shall be vertical to the horizontal plane, and the pipeline axis line shall be parallel to the horizontal plane, and the error shall not exceed ± 5 degrees
