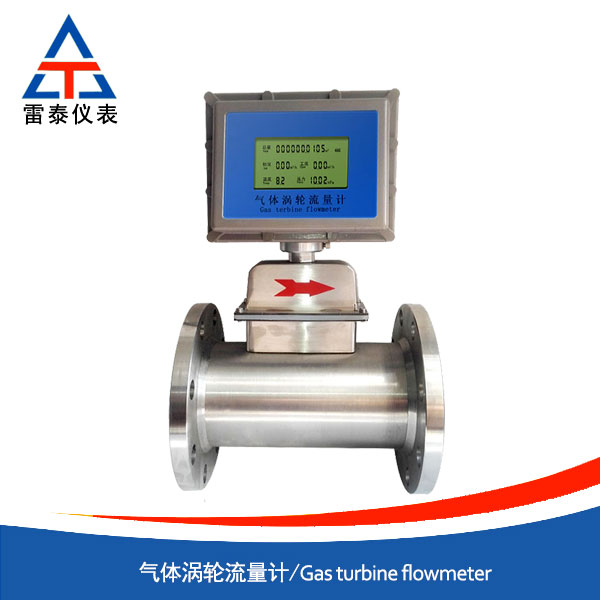

一、氣體渦輪流量計概述

1、 Overview of gas turbine flowmeter

氣體渦輪流量計采用先進的微處理技術，具有功能強,運算精度高、性能可靠等優點，主要技術指標達到國外同類產品的先進水平。是石油、化工、電力、冶金、工業與民用鍋爐等燃?xì)庥?jì)量和城市天燃?xì)狻⑷細庹{(diào)壓站計量及燃?xì)赓Q(mào)易計量的理想儀表。其工作原理是:當氣體進入流量計時，先經過特殊的整流器加速，在流體的作用下，渦輪克服阻力力矩和磨擦力矩開始轉動，當力矩達到平衡時，轉速穩定，渦輪的轉速與氣體流量成正比，并經過旋轉的發訊盤上的磁體周期性地改變傳感器磁阻，從而傳感器輸出與流休成正比的脈沖信號。產品具有以下特點:

The gas turbine flowmeter adopts advanced micro processing technology, which has the advantages of strong function, high calculation accuracy and reliable performance. Its main technical indicators reach the advanced level of similar products abroad. It is an ideal instrument for gas metering in petroleum, chemical, electric power, metallurgy, industrial and civil boilers, urban natural gas, gas regulator station metering and gas trade metering. Its working principle is: when the gas enters the flow meter, it is accelerated by a special rectifier. Under the action of fluid, the turbine overcomes the resistance torque and friction torque and starts to rotate. When the torque reaches balance, the rotating speed of the turbine is proportional to the gas flow rate. The magnetic resistance of the sensor is changed periodically by the magnet on the rotating transmission disk, so that the sensor output and flow can be achieved It is proportional to the pulse signal. The product has the following characteristics:

1、采用德國進口儀表專用精密軸承，準確度高，穩定性好，范圍度寬（20:1），小口徑在一般使用條件下五年內可免于加油，大口徑也只需偶爾加油，使用方便。

1. Special precision bearing imported from Germany is adopted, which has high accuracy, good stability and wide range (20:1). Small diameter can be free of oiling within five years under general service conditions, and large diameter only needs occasional oiling, so it is convenient to use.

2、精心設計的流道結構，避免了氣流在軸承間的流動，提高了渦輪流量計的介質適應性。

2. The well-designed runner structure avoids the flow of air between bearings and improves the medium adaptability of turbine flowmeter.

3、獨特的反推結構和密封結構設計，確保軸承長期可靠運行。

3. Unique reverse thrust structure and seal structure design ensure long-term and reliable operation of bearing.

4、采用磁阻元件來代替磁敏感線圈，既避免了磁吸力的存在，且提高了檢測靈敏度，進一步降低了始動流量，并提高了產品的穩定性和可靠性。

4. The magnetic resistance element is used to replace the magnetic sensitive coil, which not only avoids the existence of magnetic attraction, but also improves the detection sensitivity, further reduces the starting flow, and improves the stability and reliability of the product.

5、獨立式機芯設計，互換性好、維護方便。

5. Independent movement design, good interchangeability and convenient maintenance.

6、集溫度、壓力、流量傳感器和智能流量積算儀于一體，可對被測氣體溫度、壓力和壓縮因子自動跟蹤修正，直接計量氣體的標準體積流量和總量。

6. Integrating temperature, pressure, flow sensor and intelligent flow totalizer, it can automatically track and correct the temperature, pressure and compression factor of the measured gas, and directly measure the standard volume flow and total volume of gas.

7、主要性能指標達到國際先進水平，符合ISO9951標準。

7. The main performance indexes have reached the international advanced level and conform to iso9951 standard.

8、采用微功耗高新技術，憑內外電源均可工作，內電池可連續使用五年以上。

8. It can work with internal and external power supply. The internal battery can be used continuously for more than five years.

9、功能強大，四種補償方式、三種脈沖信號輸出、三種歷史數據記錄方式、兩種標準電流信號輸出方式可選。

9. It has powerful functions. Four compensation modes, three pulse signal output modes, three historical data recording modes and two standard current signal output modes can be selected.

10、通過RS485接口組成網絡通信系統，可方便實現自動化管理。RS485通信協議符合MODBUS規范。

10. The network communication system is composed of RS485 interface, which can realize automatic management conveniently. RS485 communication protocol conforms to MODBUS specification.

11、表頭可180°隨意旋轉，安裝方便。

11. The meter head can be rotated at 180 ° for easy installation.

二、氣體渦輪流量計主要技術參數

2、 Main technical parameters of gas turbine flowmeter

2.1測量的介質

2.1 measuring medium

天然氣、城市煤氣等各種燃?xì)狻⑼轭惣肮I(yè)惰性氣體。

Natural gas, city gas and other gas, alkane and industrial inert gas.

2.2使用條件

2.2 service conditions

◆環境溫度：-30℃~+60℃；      ◆介質溫度：-20℃~+80℃；

Environment temperature: - 30 ℃ ~ + 60 ℃; medium temperature: - 20 ℃ ~ + 80 ℃;

◆大氣壓力：70kPa~106kPa；      ◆相對濕度: 5%~95%。

Atmospheric pressure: 70kpa ~ 106kpa; relative humidity: 5% ~ 95%.

2.3電氣性能指標

2.3 electrical performance index

2.3.1工作電源與功耗

2.3.1 working power supply and power consumption

a.外電源：+24VDC土15%,適用于4mA~20mA輸出、脈沖輸出、RS485等；

a. External power supply is + 24 VDC, 15%, suitable for 4mA ~ 20mA output, pulse output, RS485, etc;

b.內電源：1組3.6V鋰電池,可連續使用五年以上。

b. Internal power supply: a set of 3.6V lithium batteries, which can be used continuously for more than five years.

2.4.2脈沖輸出方式（LWQ型由設定選擇以下三者之一）

2.4.2 pulse output mode (LWQ type, one of the following three is selected by setting)

a.工況脈沖信號,光電隔離放大輸出，高電平幅度≥20V,低電平幅度≤1V。

a. Working condition pulse signal, photoelectric isolation amplifier output, high level amplitude ≥ 20V, low level amplitude ≤ 1V.

b.與標準休積流量成正比的頻率信號,經光電隔離放大輸出,高電平幅度≥20V,低電平幅度≤1V。

b. The frequency signal which is proportional to the standard discharge is output by photoelectric isolation amplification. The amplitude of high level is more than 20V and that of low level is less than 1V.

c.定標脈沖信號（與IC卡閥門控制器配套）,高電平幅度≥2.8V,低電平幅度≤0.2V,單位脈沖代表體積量可設定范圍:0.01m~10.00m。

c. Calibration pulse signal (matching with IC card valve controller), high level amplitude ≥ 2.8V, low level amplitude ≤ 0.2V, unit pulse representative volume can be set in the range of 0.01M ~ 10.00m.

2.4.3RS485通信（采用光電隔離RS485通信模塊）,可直接與上微機或二次儀表聯網，遠傳顯示當前數據和歷史記錄。

2.4.3 RS485 communication (photoelectric isolation RS485 communication module) can be directly connected with the upper computer or secondary instrument, and the current data and historical records can be displayed remotely.

2.4.4 4mA~20mA標準電流信號（采用光電隔離標準電流模塊）；兩線制或三線制。

4.4.4 4 4 Ma ~ 20 mA standard current signal (using photoelectric isolation standard current module); two wire system or three wire system.

2.4.5控制信號輸出

2.4.5 control signal output

a.上、下限報警信號(UP、LP)：光電隔離開集電極（OC）輸出，正常狀態OC門截止，報警狀態OC門導通，zui大負載電流50mA，工作電壓+12VC~+24VDC。

a. Upper and lower limit alarm signals (up, LP): photoelectric isolation open collector (OC) output, OC gate off in normal state, OC gate on in alarm state, Zui large load current of 50mA, working voltage of + 12vc ~ + 24VDC.

b.關閥報警(BC)和電池欠壓報警(BL)輸出(IC卡控制器用);邏輯門電路輸出,正常輸出低電平,幅度≤0.2V；報警輸出高電平,幅度≥2.8V,負載電阻≥100k0。

b. Valve closing alarm (BC) and battery under voltage alarm (BL) output (for IC card controller); logic gate circuit output, normal output low level, amplitude ≤ 0.2V; alarm output high level, amplitude ≥ 2.8V, load resistance ≥ 100k0.

2.5實時數據存貯功能

2.5 real time data storage function

a.啟停記錄：zui近的1200次啟停時間、總量記錄。

a. Start stop record: Zui's 1200 start stop time and total amount record.

b.日記錄:zui近920天的日期、零點時刻的溫度、壓力、標準體積流量和總量記錄。

b. Diary: Zui's 920 day date, temperature, pressure, standard volume flow rate and total volume record.

c.定時時間間隔記錄：920 條定時時間間隔的8期時間、溫度、壓力、標準休積流量和總量記錄。

c. Time interval record: 920 fixed time interval records of 8 periods of time, temperature, pressure, standard accumulated flow and total amount.

2.6防爆等級：隔爆型Exd II BT4。本安型Exia II CT4。

2.6 explosion proof grade: Flameproof Exd II BT4. Intrinsic safety Exia II cT4.

2.7防護等級：IP65

2.7 protection level: IP65

三、氣體渦輪流量計選型

3、 Selection of gas turbine flowmeter

3.1適用范圍

3.1 scope of application

a.要求流量范圍度小于20:1（見表1），且對始動流量有較高要求的場合。

a. It is required that the flow range is less than 20:1 (see Table 1), and the starting flow has higher requirements.

b.不存在間隔時間短、流量波動幅度大的頻繁流量波動。

b. There is no frequent flow fluctuation with short interval and large fluctuation range.

c.可測量天然氣、城市煤氣、壓縮空氣,氮?dú)獾取?/span>

c. It can measure natural gas, city gas, compressed air, nitrogen, etc.

3.2規格的確定

3.2 determination of specifications

依據標準狀態下的供氣流量范圍及介質壓力及溫度計算工作狀態下的流量范圍（可參照旋進旋渦的選型）

According to the gas supply flow range under the standard state and the medium pressure and temperature, the flow range under the working state is calculated (refer to the selection of Precession Vortex)

3.3流量計的壓力損失

3.3 pressure loss of flowmeter

按以下公式（1）計算流量計在工作狀態下zui大流量時的zui大壓力損失△Pmax，流量計的zui大壓力損失必須滿足條件（2）方可保證流量計能正常使用，當壓損失不滿足公式（2）時，應選較大規格。

According to the following formula (1), calculate the Zui large pressure loss △ Pmax of the flowmeter under the working condition of Zui large flow rate. The Zui large pressure loss of the flowmeter must meet the condition (2) to ensure the normal use of the flowmeter. When the pressure loss does not meet the formula (2), the larger size should be selected.

a.壓力損失可用下式計算

a. The pressure loss can be calculated by the following formula

式中：P：氣體在標準狀態（20℃，101.325KPa）下的密度；

Where: P: density of gas in standard state (20 ℃, 101.325kpa);

△Pomax：介質為常態干空氣（密度為1.205kg/m）時zui大流量的壓力損失（由表1查得）；

Δ pomax: pressure loss of Zui at large flow rate when the medium is normal dry air (density is 1.205kg/m) (obtained from table 1);

Pa；當?shù)卮髿鈮海╧Pa）；       Q：工況流量(m2/h)；

PA; local atmospheric pressure (kPa); Q: flow under working condition (m2 / h);

Qmax:儀表最大工況流量(m3/h)； Pg：介質表壓力(kPa)。

Qmax: maximum working condition flow of instrument (m3 / h); PG: medium gauge pressure (kPa).

Pn：標準大氣壓（101.325kPa）；Tn：標準狀態下優良溫度（293.15K）；

PN: standard atmospheric pressure (101.325kpa); TN: excellent temperature under standard condition (293.15K);

Tg：介質工況條件下優良溫度（273.15+t）；其中t為介質工作溫度（℃）；

TG: excellent temperature under medium condition (273.15 + T); where t is medium working temperature (℃);

Zn、Zg：分別為標況和工況下的氣體壓縮系數。

Zn, ZG: gas compression coefficient under standard condition and working condition respectively.

b.壓損應滿足條件

b. The pressure loss should meet the conditions

P1-△Pmax≥Lmin...................（2）

P1-△Pmax≥Lmin...................（2）

式中：P1：在zui大流量時介質的zui低工作壓力；

Where: P1: Zui low working pressure of medium at large Zui flow rate;

△Pmax：流量計在工作狀態下zui大流量時的zui大壓力損失；

Δ Pmax: Zui large pressure loss when the flowmeter is working with large flow rate;

PLmin：用（燃）氣具使用所要求的zui低入口壓力。

Plmin: low Zui inlet pressure required by gas appliance.

四、氣體渦輪流量計外型尺寸

4、 External dimensions of gas turbine flowmeter

五、氣體渦輪流量計安裝及注意事項

5、 Installation and precautions of gas turbine flowmeter

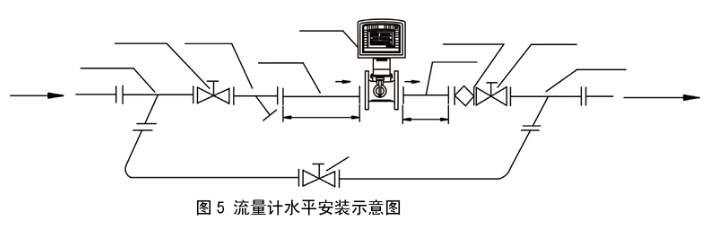

a.為了便于維修,不影響流體正常輸送，建議按下圖所示設置旁通管道。

a. In order to facilitate maintenance and not affect the normal transportation of fluid, it is recommended to set up bypass pipeline as shown in the figure below.

b.為防止雜質進入流量計,必須安裝過濾器,過濾器安裝在流量計上游≥2DN處，本公司可提供配套過濾器。

b. In order to prevent impurities from entering the flowmeter, a filter must be installed. The filter should be installed at the upstream of the flowmeter ≥ 2DN. Our company can provide matching filter.

c.安裝流量計前應將管道內的雜物、焊渣、粉塵等清理干凈。

c. Before installing the flowmeter, the sundries, welding slag and dust in the pipeline should be cleaned up.

d.流量計具有性能優越的專用整流器，因此對直管段要求較低，但必須保證前直管段≥2DN,后直管段≥1DN。（對前直管段有彎管、異徑管、調壓閥等安裝方式均適合）

d. The flowmeter has a special rectifier with superior performance, so the requirements for straight pipe section are lower, but the front straight pipe section must be ≥ 2DN, and the rear straight pipe section must be ≥ 1DN. (it is suitable for elbow, reducer and pressure regulating valve in front of straight pipe section)

e.流量計水平安裝，并確保氣流方向和流量計殼體上的方向標志-致。（須垂直安裝時應在訂貨時注冊，產品需做相應配置；安裝使用時，氣流方向應從上至下）

e. The flowmeter shall be installed horizontally, and the flow direction shall be consistent with the direction mark on the flowmeter shell. (for vertical installation, registration should be made at the time of ordering, and the product should be configured accordingly; when installing and using, the air flow direction should be from top to bottom)

f.流量計水平安裝時，建議在流量計后直管段后安裝鋼制伸縮器（補償器），伸縮器必須符合管道設計的公稱通徑和公稱壓力的要求。（伸縮器是作為管道應力的補償及方便流量計的安裝與拆卸）

f. When the flowmeter is installed horizontally, it is recommended to install a steel expansion joint (compensator) behind the straight pipe section behind the flowmeter. The expansion joint must meet the requirements of the nominal diameter and nominal pressure of the pipeline design. (the expansion device is used to compensate the pipeline stress and facilitate the installation and disassembly of the flowmeter)

g.流量計安裝在室外使用時，建議加配防護罩，以免雨水浸入和烈8曝曬而影響流量計使用壽命。

g. When the flowmeter is installed outdoors, it is recommended to add a protective cover to avoid rain immersion and strong 8-exposure, which will affect the service life of the flowmeter.

h.流量計使用場合周圍不能有強的外磁場干擾，流量計須可靠接地，但不得與強電系統地線共用。

h. There should be no strong external magnetic field interference around the flowmeter, and the flowmeter must be reliably grounded, but it should not be shared with the ground wire of strong current system.

六、氣體渦輪流量計訂貨須知

6、 Instructions for ordering gas turbine flowmeter

6.1用戶訂購本產品時應根據管道公稱通徑、公稱壓力、流量范圍、介質溫度范圍及環境條件選擇合適的規格。

6.1 when ordering this product, the user should select the appropriate specification according to the nominal diameter, nominal pressure, flow range, medium temperature range and environmental conditions.

6.2流量計一般為基本型，帶工況脈沖輸出，若需其它附件及輸出功能，請?jiān)谟嗀洉r(shí)說明。

6.2 the flowmeter is generally of basic type with pulse output under working condition. If other accessories and output functions are required, please explain when ordering.

6.3用戶在訂貨時，請按照下列格式詳細正確填寫。

6.3 when ordering, please fill in the details and correctly according to the following format.
