一、概述

1、 Overview

威力巴流量計采用了完全符合空氣動力學原理的工程結構設計，是一種在精度、功效及可靠方面達到了無比卓越程度的傳感元件。

Weiba flowmeter adopts the engineering structure design which fully conforms to the principle of aerodynamics. It is a kind of sensor element which has achieved incomparable excellence in precision, efficiency and reliability.

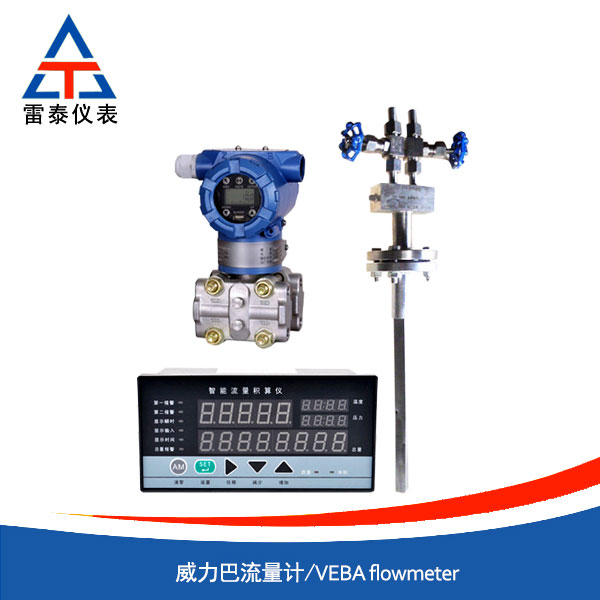

1、威力巴流量計用途

1. Application of VEBA flowmeter

威力巴流量計適用于氣體、液體和蒸汽的高精度流量測量。威力巴流量計是一種差壓式、速率平均式流量傳感器，通過傳感器在流體中所產生的差壓進行流量測量。威力巴流量計反映流體真實的流速，其精度達到± 1.0，重復性達± 0.1。威力巴的突出優點是：輸出一個非常穩定、無脈動的差壓信號

Wilbur flowmeter is suitable for high precision flow measurement of gas, liquid and steam. Wilbur flowmeter is a differential pressure type and rate average type flow sensor, which can measure the flow through the differential pressure generated by the sensor in the fluid. The Verabar flowmeter can reflect the real flow velocity of the fluid, and its accuracy and repeatability can reach ± 1.0 and ± 0.1 respectively. The outstanding advantage of VEBA is: output a very stable, non pulsating differential pressure signal

2 、探頭的設計特點

2. Probe design features

子彈頭截面形狀的探頭能產生精確的壓力分布，固定的流體分離點；位于探頭側后兩邊、流體分離點之前的低壓取壓孔，可以生成穩定的差壓信號，并且有效防堵。內部一體化結構能避免信號滲漏，提高探頭結構強度，保持長期高精度。

The probe with the cross-section shape of the bullet can produce accurate pressure distribution and fixed fluid separation point; the low-pressure pressure tapping hole on both sides behind the probe side and in front of the fluid separation point can generate stable differential pressure signal and effectively prevent blockage. The internal integrated structure can avoid signal leakage, improve the structural strength of the probe and maintain long-term high precision.

3.威力巴探頭防堵塞設計

3. Anti clogging design of VEBA probe

威力巴流量探頭以其卓越的防堵設計，徹底擺脫了阿牛巴等插入式流量探頭易堵塞的弊端，使均速管流量探頭的防堵水平達到了空前的高度。

With its excellent anti clogging design, Wilbur flow probe has completely got rid of the disadvantages of plug-in flow probes such as Annubar, which makes the anti blocking level of flow probe of averaging tube reach an unprecedented height.

探頭高壓取壓孔不會被堵探頭的前部形成高壓區，壓力略高于管道靜壓，阻止了顆粒進入。請注意：在探頭的高壓取壓孔處流體的速度是零，沒有物體會進入取壓孔。開機時，流體在管道靜壓作用下，進入彎管，很快形成了壓力平衡的狀態。當壓力平衡狀態形成以后，流體在彎管進口處遇到高壓，繞道而行，不再進入彎管中。

The high pressure tapping hole of the probe will not be blocked, and a high pressure area will be formed in the front of the probe, and the pressure is slightly higher than the static pressure of the pipeline, which prevents the particles from entering. Please note: the velocity of the fluid at the high pressure tapping hole of the probe is zero, and no object will enter the pressure tapping hole. When the machine is started up, the fluid enters the elbow under the static pressure of the pipe, and soon forms a state of pressure balance. When the pressure equilibrium state is formed, the fluid will encounter high pressure at the inlet of the elbow, and will bypass and no longer enter the elbow.

威力巴流量計的低壓孔實現本質防堵一般情況下，灰塵、沙子和顆粒在渦街力的作用下，集中在探頭的后部。這就是為什么秋天的樹葉總是集中在背風的房子后面的原因。其它的探頭由于低壓取壓孔取在探頭尾部真空區，在渦街力的作用下，探頭的低壓取壓孔很快地被渦流帶來的雜質堵死。威力巴流量計的獨特設計，使低壓取壓孔位于探頭側后兩邊，流體分離點和尾跡區的前部。這種設計從本質上防止了堵塞并且能產生一個非常穩定的低壓信號。

In general, dust, sand and particles are concentrated in the back of the probe under the action of vortex street force. That's why autumn leaves are always concentrated behind houses that are leeward. For other probes, the low-pressure tapping hole is located in the vacuum area at the tail of the probe. Under the action of vortex street force, the low-pressure pressure tapping hole of other probes is quickly blocked by impurities brought by eddy current. The unique design of Wilbur flowmeter makes the low pressure tapping hole located on both sides behind the probe side, and in front of fluid separation point and wake area. This design essentially prevents clogging and produces a very stable low pressure signal.

4.探頭的優點

4. Advantages of probe

● 可測量多種介質，應用范圍廣泛

It can be used in a wide range of applications

● 精度高、量程比大

High precision and large range ratio

● 探頭取壓孔本質防堵

The probe pressure tapping hole is essentially anti blocking

● 測量信號穩定、波動小

The measurement signal is stable with small fluctuation

● 管道永久壓損低

Low permanent pressure loss of pipeline

● 獨有高強度的子彈頭形單片雙腔結構

Unique high strength bullet shaped single-chip double cavity structure

● 安裝費用低，基本免維護

Low installation cost and maintenance free

● 可以在線安裝和檢修

It can be installed and maintained online

5.威力巴均速管流量傳感器的特點

5. Characteristics of Velcro averaging tube flow sensor

● 穩定的信號

● stable signals

威力巴的低壓取壓孔位于探頭側后兩邊、流體與探頭分離點之間，遠離渦流波動區域。

The low pressure tapping hole of VEBA is located on both sides behind the probe side and between the separation point of fluid and probe, far away from the eddy current fluctuation area.

● 卓越的長期高精度

Excellent long-term high precision

威力巴能夠保證精度的長期穩定，這是因?yàn)椋?/span>

Weiba can guarantee the long-term stability of accuracy because:

⑴. 它不受磨損、污垢和油污的影響。

(1) it is not affected by wear, dirt and oil.

⑵. 結構上沒有可移動部件。

(2) there are no movable parts in the structure.

⑶. 設計上排除了堵塞現象的發生。在探頭前部，高靜壓區圍繞著探頭，使高壓取壓孔不會被堵塞。最重要的是，低壓孔取在探頭側后兩邊，流體從表面斜掠而過，保護了低壓孔不會被掠動，而其它的探頭容易堵塞，因?yàn)樗鼈兊牡蛪喝嚎自陔s質聚集的低壓波動區域。

(3) the blocking phenomenon is eliminated in the design. In the front of the probe, the high static pressure area surrounds the probe, so that the high pressure tapping hole will not be blocked. The most important thing is that the low-pressure hole is located on both sides behind the probe side, and the fluid flows across the surface obliquely, which protects the low-pressure hole from being swept. Other probes are easy to block because their low-pressure pressure tapping holes are in the low-pressure fluctuation area where impurities accumulate.

● 最低的安裝費用

● minimum installation cost

⑴. 只需要進行幾英寸的線條焊接，完成安裝是非常簡單和快捷的。

(1) only a few inches of line welding is needed, and the installation is very simple and fast.

⑵. 應用專用工具，可以實現帶壓在線安裝。

(2) by using special tools, online installation with pressure can be realized.

⑶. 全部的閥和各種儀器的接口只需進行簡單的裝配，需要非常低的裝配費用。

(3) all valves and interfaces of various instruments only need simple assembly, which requires very low assembly cost.

● 非常低的運行費用

● very low operating costs

⑴.它是一種非收縮節流的設計，作為一種插入式流量探頭，威力巴的運行費用是最低的。

(1) it is a non shrinking throttle design. As a plug-in flow probe, the operation cost of VEBA is the lowest.

⑵.威力巴流量計只產生非常低的永久性壓力損耗，典型的少于0.7KPa

(2) verbar flowmeter only produces very low permanent pressure loss, which is less than 0.7kpa

⑶. 一個孔板元件所產生的永久性壓力損耗超過14KPa

(3) the permanent pressure loss caused by an orifice element is more than 14 kPa

⑷.與孔板比較，威力巴的能量損耗降低了95。

(4) compared with orifice plate, the energy loss of VEBA is reduced by 95%.

● 連續工作的威力巴從根本上杜絕了堵的可能，但是在以下情況下，威力巴仍要注意防堵：

The possibility of blocking is completely eliminated by the continuous operation of VEBA. However, in the following cases, Weiba should pay attention to the prevention of blockage:

⑴. 當引壓管泄漏，探頭高壓平衡區遭到破壞，雜質中直徑較小的顆粒就有可能進入取

(1) when the impulse tube leaks, the high-pressure equilibrium area of the probe is destroyed, and the particles with smaller diameter in the impurities may enter into the probe

壓孔。

Pressure hole.

⑵. 當管道處于停產時，由于分子的布朗運動，顆粒小的雜質有可能進入取壓孔。

(2) when the pipeline is shut down, due to the Brownian motion of molecules, the impurities with small particles may enter the pressure tapping hole.

⑶. 系統頻繁開停機，在高壓區形成的瞬間，顆粒小的雜質有可能進入取壓孔，日積月累，就有可能造成探頭的堵塞。

(3) when the system starts and stops frequently, impurities with small particles may enter the pressure tapping hole at the moment when the high pressure zone is formed, which may lead to the blockage of the probe.

⑷. 介質中含有大量的焦油、藻類生物，或者含有纖維狀的物質，也有可能造成探頭的堵塞。

(4) the medium contains a lot of tar, algae, or fibrous substances, which may cause the probe to be blocked.

二、主要技術指標

2、 Main technical indicators

1、威力巴流量測量系統性能指標

1. Performance index of Wilbur flow measurement system

1）測量精度：±0.5~1% 重復精度：±0.1

1) Measurement accuracy: ± 0.5 ~ 1% repetition accuracy: ± 0.1

2）適用壓力：0～40MPa 適用溫度：-100℃～＋500℃

2) Applicable pressure: 0 ~ 40MPa, applicable temperature: - 100 ℃～ + 500 ℃

3）測量上限：根據工藝要求及探頭強度而定；測量下限：取決于測量最小差壓要求，低于最小差壓時，可采用特殊設計來滿足要求。

3) Upper limit of measurement: determined according to process requirements and probe strength; lower limit of measurement: it depends on the minimum differential pressure requirement. When it is lower than the minimum differential pressure, special design can be adopted to meet the requirements.
